Roller shot blasting machine

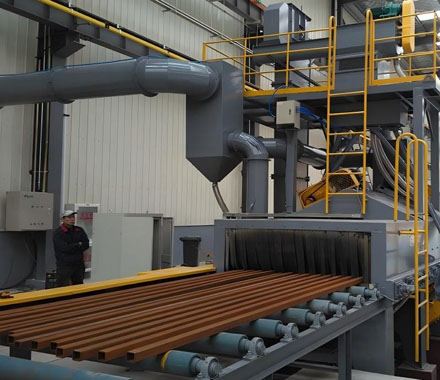

Q69 steel plate and profile shot blasting machine

Time：2026-07-15Author:：Kechang Machinery

QH69 Steel Plate & Section Shot Blasting Pretreatment Line

This complete production line integrates advantages of similar domestic and overseas equipment, reaching advanced international technical level with PLC automatic control system.

Blasting derusting section: Equipped with high-efficiency blast wheels and full curtain abrasive separator;
Cleaning section: Adopts heavy-duty nylon roller brushes and three-stage high-pressure air cleaning device;
Preheating & drying section: Supports multiple heating modes for flexible use;
Painting section: Equipped with high-pressure airless spraying system.

It is specially designed for full-process surface treatment of steel plates and various profiles, covering preheating, shot blasting derusting, painting and drying. It can also conduct shot blasting cleaning and surface strengthening for metal structural parts.

Technical Parameters：

Item	Unit	QH698	QH6912	QH6915	QH6918
Effective Cleaning Width	mm	800	1200	1500	1800
Inlet Opening Size	mm	1000×1700	1400×1700	1700×1700	2000×1800
Workpiece Length Range	mm	1200-12000	1200-13000	1500-13000	2000-13000
Max Workpiece Size	mm	800×1500	1200×1500	1500×1500	1800×1600
Conveying Speed	m/min	0.5-4	0.5-4	0.5-4	0.5-4
Abrasive Blasting Capacity	kg/min	8×180	8×180	8×250	8×250
Initial Abrasive Loading Volume	kg	4000	5000	5000	6000
Dust Exhaust Air Volume	m³/h	20000	22000	25000	25000
Total Installed Power	kW	125	130	180	180

Qingdao Kechang Machinery provides customized production lines, on-site installation, commissioning and long-term after-sales technical support for all models.
