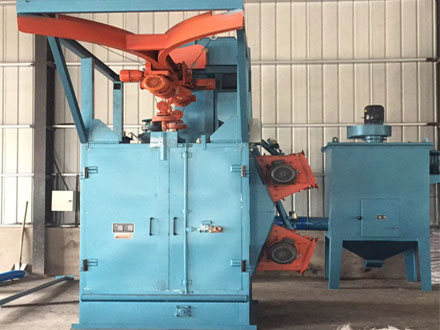

Q37 Hanger Type Shot Blasting Machine：

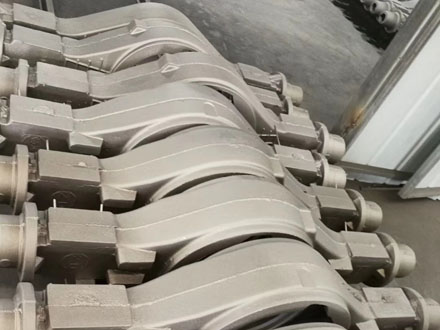

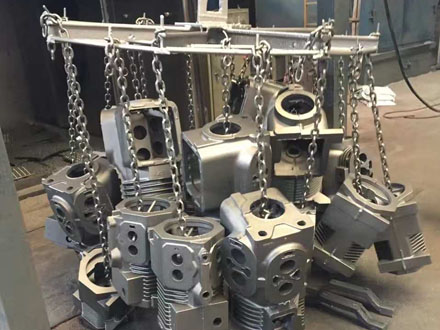

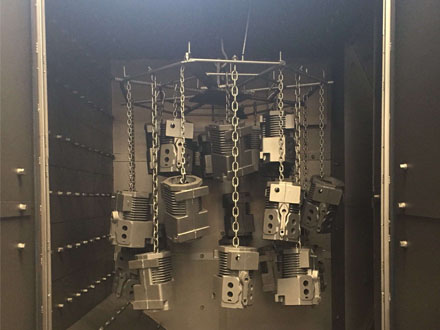

Q37 series hook shot blasting machine is suitable for surface cleaning and shot peening strengthening of castings, forgings and steel structural parts. It can remove adhered sand and oxide scale on workpiece surfaces, and also clean and strengthen heat-treated parts. The equipment greatly improves the appearance quality and surface performance of spare parts, and is widely applied in aerospace, military industry, heavy equipment, transportation, chemical metallurgy, machinery processing and other industries.
Technical Parameters：
| Model | Max Workpiece Size(mm) | Single Hook Load(kg) | Abrasive Blasting Capacity(kg/min) | Elevator Capacity(t/h) | Separator Capacity(t/h) | Dust Air Volume(m³/h) | Power(Excluding Dust Collector)(kW) | Overall Dimension(mm) |
|---|---|---|---|---|---|---|---|---|
| Q376 | 600×1100 | 500 | 2×120 | 15 | 15 | 5000 | 19 | 4429×2850×3443 |
| Q378 | 800×1500 | 1000 | 2×200 | 22 | 22 | 8000 | 32.5 | 4325×2660×5009 |
| Q3710 | 900×1600 | 1000 | 2×250 | 30 | 30 | 9000 | 36.55 | 5047×3850×5156 |
| QD3710 | 900×1600 | 1000 | 2×250 | 30 | 30 | 9000 | 39.55 | 5844×2742×5716 |
| Q3720 | 1400×2300 | 2000 | 3×250 | 45 | 45 | 15000 | 61.27 | 6110×3599×7842 |
| Q3730 | 1600×2300 | 3000 | 3×250 | 45 | 45 | 15000 | 64.4 | 7085×4650×8652 |
| Q3750 | 1800×2300 | 5000 | 4×250 | 60 | 60 | 18000 | 78.4 | 7062×5460×8652 |
Qingdao Kechang Machinery provides complete equipment, on-site installation, commissioning and long-term after-sales maintenance service.
