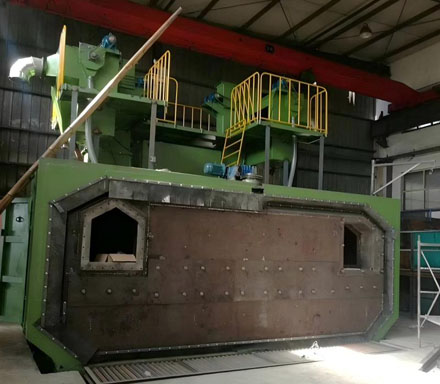

QPY series coiled wire shot blasting machine is professional surface treatment equipment specially developed for bundled coiled wire. It can completely replace the traditional pickling process.
This equipment is suitable for carbon steel, alloy steel, stainless steel, spring steel, bearing steel and other coiled wire materials. It can thoroughly remove surface oxide scale, rust and rolling slag in one pass, while realizing surface stress relief and strengthening treatment. It is widely matched with production lines for fasteners, springs, wire drawing, construction steel bars and hardware forging industries.
| Item | QPY38 | QPY55 | QPY76 |
|---|
| Wire Diameter | Φ4-20mm | Φ4-25mm | Φ6-24mm |
| Production Capacity | 6-10t/h | 10-16t/h | 16-24t/h |
| Number of Blast Wheels | 5 sets | 6 sets | 8 sets |
| Total Power | 5×22kW | 6×22kW | 8×22kW |
| Overall Dimension | 150 | 180 | 220 |
