Product Introduction：

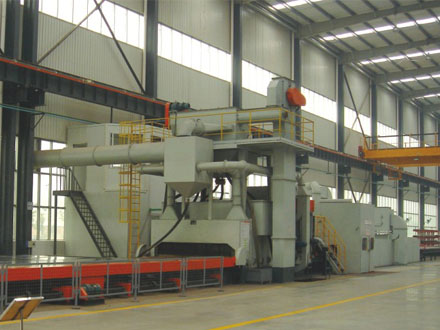

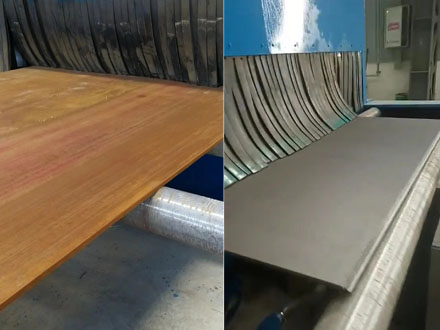

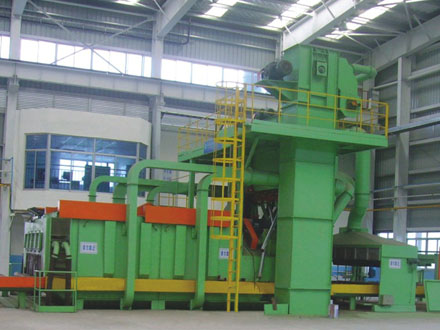

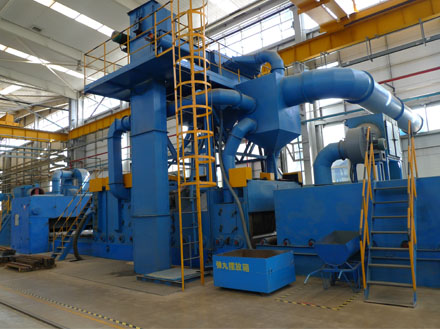

QXY series roller conveyor pretreatment lines are specially designed for surface treatment of steel plates and profiles.They effectively improve corrosion resistance and fatigue performance of metal workpieces, extending their service life, and complete automatic anti-corrosion painting on workpiece surfaces.
The whole line adopts PLC control with dual operation systems: computer and button console. It supports fault self-diagnosis and alarm functions. The full automatic workflow covers loading, transverse shifting, preheating, shot blasting cleaning, sweeping, painting, drying and unloading, with easy operation. It is an ideal complete automatic equipment for rust removal, welding slag cleaning, stress relief and anti-corrosion coating of steel plates and profiles.
Main Technical Parameters：
| Item | QXY2000 | QXY2500 | QXY3000 | QXY3500 | QXY4000 | QXY4500 |
|---|
| Steel Plate Max Width | 2000mm | 2500mm | 3000mm | 3500mm | 4000mm | 4500mm |
| Steel Plate Thickness | 3～60mm | 3～60mm | 3～60mm | 3～60mm | 3～100mm | 3～100mm |
| Profile Max Section Size | 1600×400mm | 2200×400mm | 2400×500mm | 2800×500mm | Customized | Customized |
| Profile Min Section Size | 60×80mm | 60×80mm | 60×80mm | 60×80mm | 60×80mm | 60×80mm |
| Profile Length | 3～12m | 3～12m | 3～12m | 3～12m | 3～12m | 3～12m |
| Max Allowable Load | 1200 kg/m | 1200 kg/m | 2000 kg/m | 2000 kg/m | 3000 kg/m | 3000 kg/m |
| Workpiece Conveying Speed | 1-5 m/min | 1-5 m/min | 1-5 m/min | 1-5 m/min | 1-5 m/min | 1-5 m/min |
Qingdao Kechang Machinery can customize full sets of pretreatment lines according to customer demands, and provide complete installation, commissioning and after-sales service.
