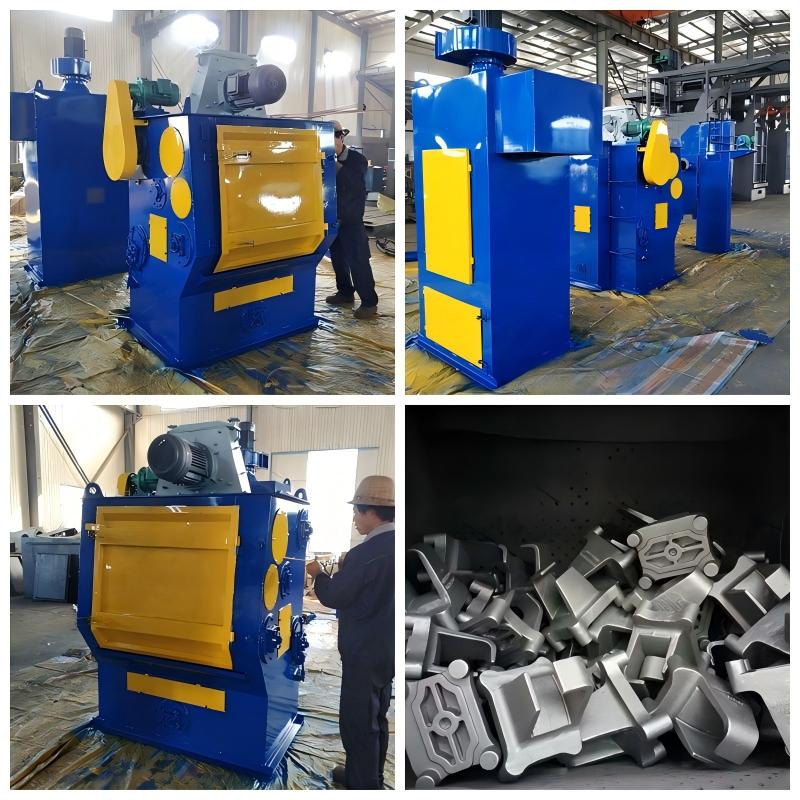

Q326 Rubber Belt Shot Blasting Machine：
Q326 belt type shot blasting machine is a small-size, high-efficiency and cost-effective surface cleaning equipment. It features compact structure, small floor space and stable performance.
It is widely used for derusting, descaling and surface strengthening of small castings, forgings, stampings, gears and springs. Especially suitable for precise parts that are easy to be damaged or collided during cleaning.
Main Features：
Equipped with high-efficiency blast wheel for large blasting volume and low maintenance cost. Wind separator realizes accurate abrasive separation and reduces steel shot loss.
Adopts bag-type dust removal system to ensure standard environmental protection emission. The rubber belt ensures smooth workpiece turnover without scratching or damaging parts, and greatly reduces working noise.
Working Principle：
Workpieces are flipped evenly by the rubber belt. High-speed steel shots impact the workpiece surface to remove rust, oxide scale and impurities.
The abrasive and dust mixture is automatically conveyed, lifted and separated. Clean steel shots are recycled for continuous use, while dust is filtered and collected by the dust removal system.
Technical Parameters
| Item | Parameter |
|---|
| Overall Dimension | 1300×1800×3500mm |
| Single Workpiece Weight | Below 10kg |
| Max Load Capacity | 200kg |
| Blast Wheel Power | 7.5kW |
| Blasting Capacity | 200kg/min |
| Elevator Power | 1.5kW |
| Dust Removal Air Volume | 2000m³/h |
| Total Power | 11.5kW |
| Machine Weight | 2000kg |
